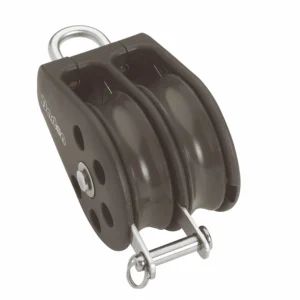

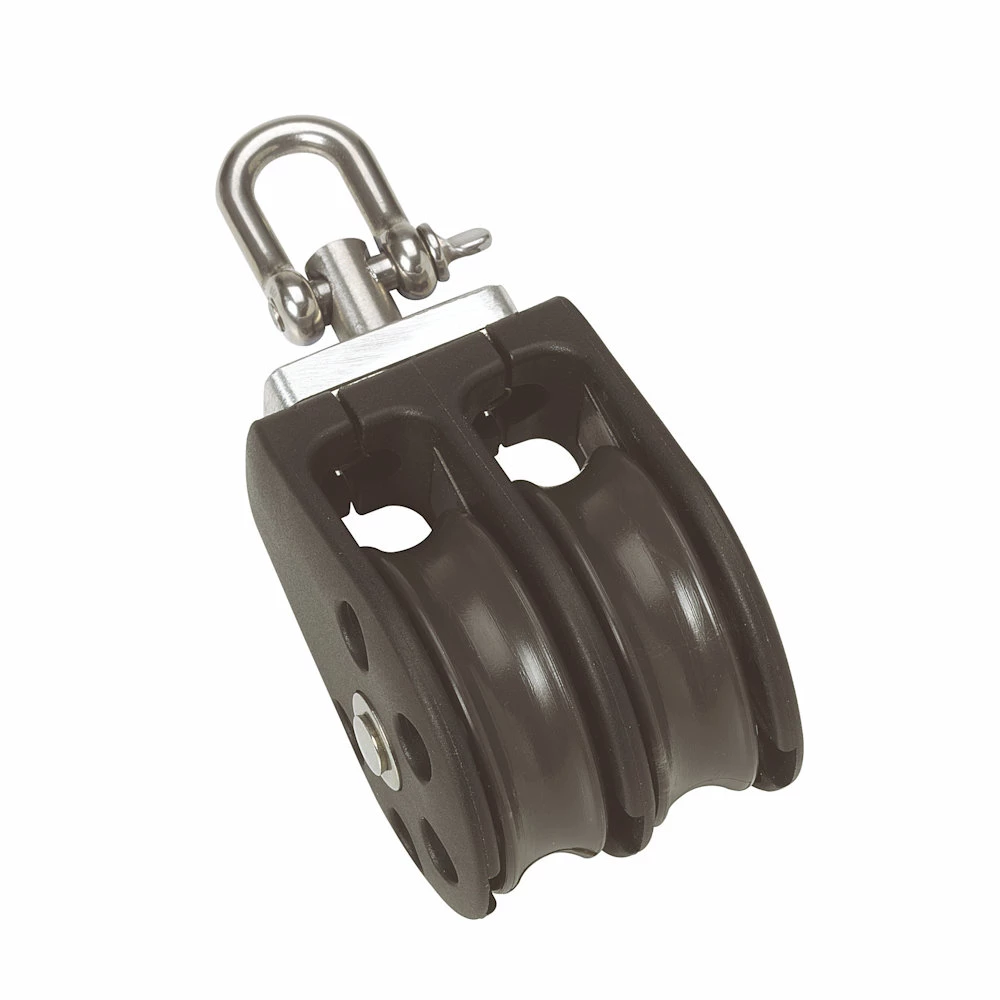

Barton Double Block 30mm with Swivel
The Barton Size 1 plain bearing block features a 30 mm sheave. The range incorporates an internal steel frame for added strength and durability. These lightweight blocks feature a modern design and versatile configurations suitable for a wide variety of applications on boats of all sizes.
Suitable for ropes up to 8 mm in diameter.
SPECIFICATIONS
Weight: 80 g
Dimensions: 78 × 40 × 32 mm
Size: 1 (30 mm)
Sheave Dimensions: 30 × 12 mm
Maximum Rope Diameter: 8 mm
Safe Working Load (SWL): 355 kg
Breaking Load: 710 kg
