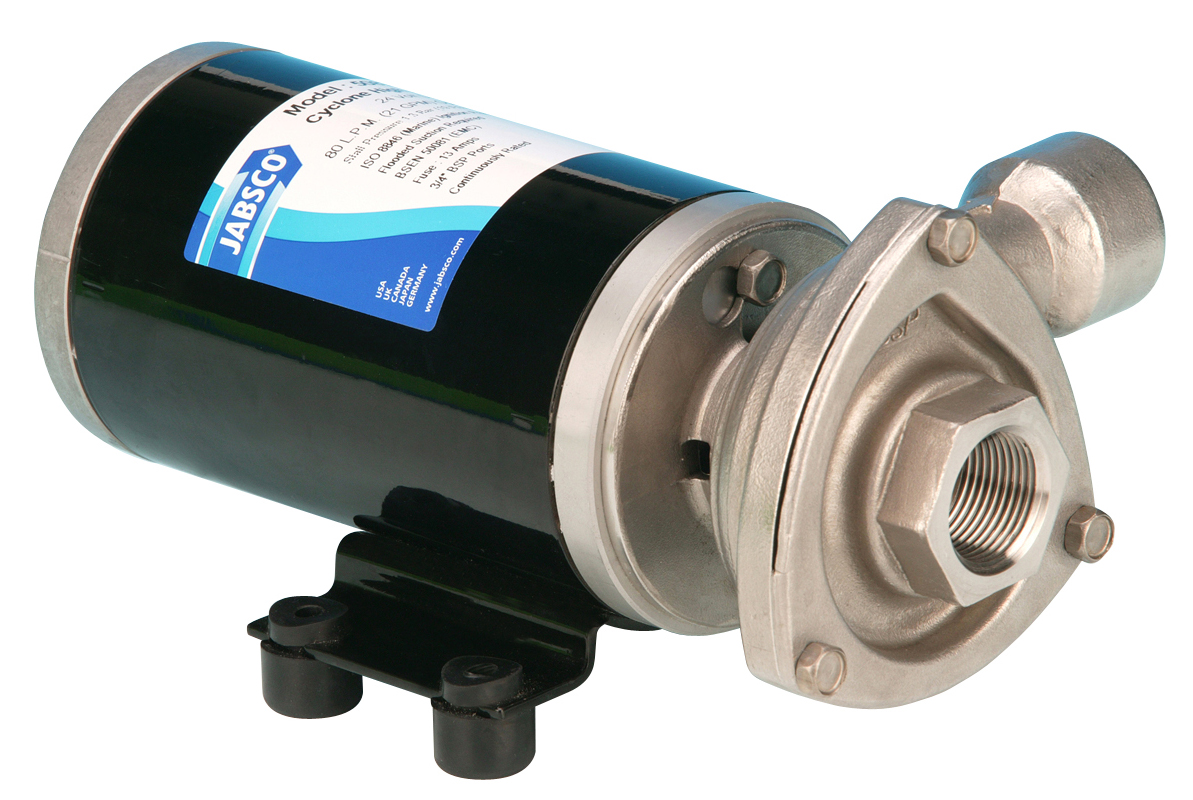

Jabsco Cyclone Circulation Pump, High Pressure, 24V
Jabsco Cyclone centrifugal pumps are engineered using 316 stainless steel and are ideal for engine cooling, closed-circuit circulation systems, livewell circulation, central heating, chemical transfer and other flooded suction applications.
The Jabsco Cyclone pumps offer brushed motors capable of 2,500-3,500 hours along with an anti-clog impeller that allows small debris to pass through the pump. If servicing or adjustment is necessary, only a 3/8 inch wrench is needed to remove the impeller to inspect the mechanical seal.
The Cyclone series of pumps can also handle seawater, fresh water, anti-freeze, mild chemicals, and bilge water, and accepts fluid temperatures between 4ºC and 95ºC.
SPECIFICATIONS
- Long life centrifugal pump which gives high flows up to 80 litre / minute
- Pressure up to 1,2 bar (17,4 PSI) / maximum head 12m
- Intermittent rated: Recommended duty max. 30 minutes on / min. 30 minutes off
- Ideal for ballast transfer systems and for transferring diesel, water and mild chemicals
- Can be used in conjuction with trigger nozzles
- Robust stainless steel body and long life DC motor
- Non-self-priming, requires flooded suction
- Fluid temperature +4°C min. +95°C max.
- Connection: For 3/4″ BSP internal threaded ports
- Amperage 10,5A; fuse size 15A
- Dimensions: Height 12,2 cm / width 12,0 cm / length 20,5 cm
