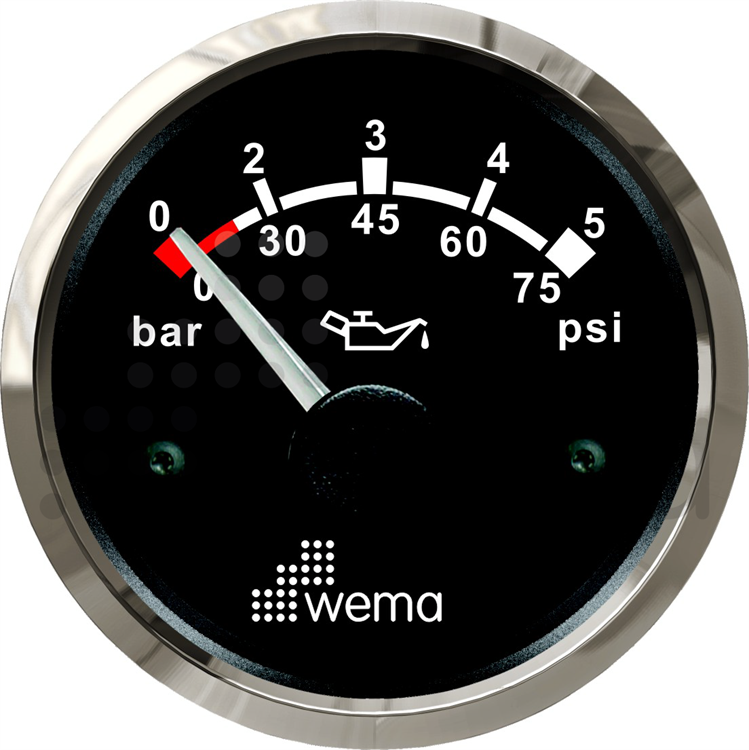

Wema Oil Pressure Instrument
The oil pressure gauge checks the engine’s oil pressure. An important gauge for preventing engine failure if, for any reason, the oil pressure should be too low. Connects to Wema’s oil pressure sensor.
SPECIFICATIONS
• Working range: 0–5 bar
• Backlight: Red or yellow illumination
• Operating temperature: -25 to +70°C
• Waterproof rating: IP67
• Resistance: Ozone, UV, and saltwater resistant
• Protection: Fully corrosion protected
• Power supply: 12/24 V
• Power consumption: 0–130 mA
• Mounting hole diameter: 52 mm
• Outer dimension: 56 mm
• Depth: 60 mm
